Thuis /Producten/Panasonic PTZ-camera/72.5Â ° 12x Wide Angle + Zoom Lens Optical Education Equipment All In One 1080P 60fps H265 HD IDS USB Output PTZ Camera Auto Teaching Path Camera For Classroom

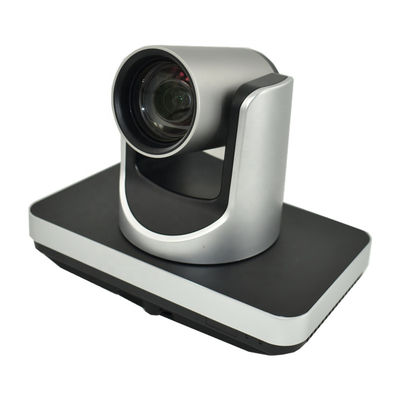

72.5Â ° 12x Wide Angle + Zoom Lens Optical Education Equipment All In One 1080P 60fps H265 HD IDS USB Output PTZ Camera Auto Teaching Path Camera For Classroom

1 Piece
MOQ
$904.60(1 - 99 Pieces) $874.60(>=100 Pieces)
Prijs
72.5Â ° 12x Wide Angle + Zoom Lens Optical Education Equipment All In One 1080P 60fps H265 HD IDS USB Output PTZ Camera Auto Teaching Path Camera For Classroom
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Type: Video Conference System
Function: All In One Video Conferencing Endpoints
Simultaneous Interpretation: No
Model Number: FT-V800B
OEM/ODM: Custom Logo Label Manual/ Package Housing/Case Camera And Solutions
Name: SDI USB Output Auto Teaching Tracking Camera PTZ Camera For Classroom
Sensor: Panasonic's 1/2.7 inch, 2.07 Million effective Pixels HD CMOS Sensor
Main Features: 72.5° Wide-angle Lens + 12x Optical zoom
Ultra-High Frame Rate: The Output Frame Rate Up To 60fps In 1080p
H.265 Support: H.265 Encoding Support
All-In-One Design: All-In-One Design, Can Output 5 Channel HD Video
Lens: 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Noise Reduction: 2D&3D Digital Noise Reduction
Weight: 2.0Kg
Basis informatie
Model Number: FT-V800B
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Carton
Productomschrijving
Model NO.
FT-V800B

















Main Features
●All-in-One Design
All-in-One design, can output 5 channel HD video (3 channel for close-up camera,
2 channel for panorama camera) at the same time.both teacher tracking and
student traking are use the same devide.
●Changeable Lens
Panorama camera can replace the lens, compatible M12 mount lens, easy to use
for different size classroom.
●Adjustable Viewing Angle
Panorama camera can adjust viewing angle in vertical(-20° ~ 0°), conveninet
installation and degugging.
●High Efficient Traking
Built-in image recognition and traking algorithms, can be tracking realized
without any auxiliary camera or tracking host.
●Same Image Style
Both panorama camera and close-up camera use the same ISP, make sure
the image output have the same brightness, color, style,etc.
●Easy Configuration
Easy to make a configuration for tracking, direct connect by Ethernet, just need
make some base parameters for configuration, largeengineering debugging time
and cost will be save.
●72.5° Wide-angle Lens + 12x optical zoom
Close-up camera use 72.5° wide-angle high quality lens, support 12x optical zoom,
and 16x digital zoom.
●H.265 Support
H.265 encoding support, enabling full HD 1080p video stream by ultra-low bandwidth.
●1080P Full HD
Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS
sensor, can reach maximum 1920 x 1080 highresolution and achieve quality image.
●Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P.
●AAC Audio Encoding
Close-up camera support AAC audio encoding, better sound quality and smaller
bandwidth.
●Local Storage
Close-up camera support
Name
All-in-One HD Teaching Tracking Camera
Close-up Camera
Video System
1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25
Sensor
1/2.8'', CMOS, Effective Pixel: 2.07M
Scanning Mode
Progressive
Lens
12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom
16x (optional)
Minimal Illumination
0.5 Lux @ (F1.8, AGC ON)
Shutter
1/30s ~ 1/10000s
White Balance
Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
Backlight Compensation
Support
Digital Noise Reduction
2D&3D Digital Noise Reduction
Video S/N
≥55dB
Horizontal Angle of View
72.5° ~ 6.9°
Vertical Angle of View
44.8° ~ 3.9°
Horizontal Rotation Range
±170°
Vertical Rotation Range
'-30° ~ +90°
Pan Speed Range
1.7° ~ 100°/s
Tilt Speed Range
1.7° ~ 69.9°/s
H & V Flip
Support
Local Storage
Support
Number of Preset
255
Preset Accuracy
0.1°
Panorama Camera
Video System
1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25
Sensor
1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning Mode
Progressive
Lens Mount
M12 Mount
Teacher Panorama Lens
f=6mm, F1.8, AoV about 60°(default, changeable)
Student Panorama Lens
f=3.24mm, F1.8, AoV about 95° (default, changeable)
Minimal Illumination
0.05 Lux @ (F1.8, AGC ON)
Shutter
1/30s ~ 1/10000s
White Balance
Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
Digital Noise Reduction
2D, 3D digital noise reduction
Backlight Compensation
Support
Image Freeze
Support
H & V Flip
Support
Network Features
Video Compression
H.264 / MJEPG
Video Stream
First Stream, Second Stream
First Stream Resolution
1920x1080, 1280x720, 1024x576
Second Stream Resolution
720x576, 720x480, 320x240
Video Bit Rate
32Kbps ~ 20480Kbps
Bit Rate Type
Variable Rate, Fixed Rate
Frame Rate
50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps
Audio Compression
AAC
Audio Bit Rate
96Kbps, 128Kbps, 256Kbps
Support protocols
TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.
Input/Output Interface
HD Output
1xHDMI: Version 1.3 2x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
Network Interface
2xRJ45: 10M/100M Ethernet Interface
Audio Interface
'1-ch: 3.5mm Audio Interface, Line In
USB
'1xUSB2.0: Type A female jack
Communication Interface
1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
2xRS232 Out: 8pin Min DIN, Max Distance: 30m
1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack
JEITA type (DC IN 12V)
Generic Specification
Input Voltage
DC 12V
Current Consumption
1.5A (Max)
Operating Temperature
'-10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature
'-40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption
18W (Max)
Size
240mm x 144mm x 200mm
Net Weight
2.0Kg
MTBF
30000h
FAQ
Q1: Are you factory or trading company?

 A: Yes, we' re a factory . We are also happy to design if you have some special requirement on products.

Q2: Can you customize logo ?

A: Yes. we can customize logo, pls provide us your logo AI or PDF file.

Q3: How do you control the quality of the products?

 A: Inspect the in coming material before accept.
Inspect during proceeding. 100% inspection before shipment.

Q4: How long I can get the feedback after we sent the enquiry?

 A: We will reply you within 30 minutes in working day

Q5: Why choose us?

A: High quality, professional service, factory price, and timely delivery.
