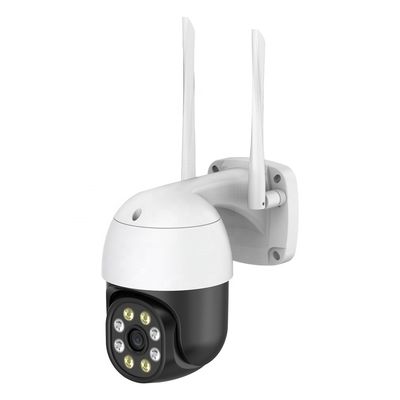

Model | TS-P3-X30-SG-3MP-WIFI | |
Camera parameter | ||
processor | XM535 | |
Camera pixel | 3MP | |
sensor | color 0.1Lux@F1.2, black and white 0.01Lux@F1.2 | |
shutter | 1/50 (1/60) seconds to 1/10000 seconds | |
Lens | 3.6mm-F1.4, horizontal vision 87 °, diagonal 104 ° | |
Lens interface | M12 | |
Night light pattern | Dot matrix four lights infrared black and white night vision / dot matrix four lights warm light night vision full color [automatic switching] | |
Infrared illumination distance | Within 30 meters | |
Compression format | ||
Video compression format | H.265+ | |
Video compression code rate | HD, label second gear, rate adaptive | |
image | ||
Maximum image size | Main stream: 2304*1296; sub-stream: 704*576 | |
Frame rate | Maximum frame rate: 50Hz: 1-25fps network frame rate adaptation | |
Features | ||
Alert function | Intelligent dual lights human recognition alarm/cross-line, area, bidirectional flow detection | |
Alarm mode | Siren warning, push alarm via mobile APP , custom alarm voice, cross-line/area alarm setting | |
Two-way voice | Support | |
Cloud storage | Support (free experience for 30 days) at home and abroad | |
supporting agreement | Xiongmai private agreement, onvif agreement | |
Irradiation rotation angle | Rotate 320 degrees horizontally left and right and 90 degrees vertically | |
supporting agreement | XM private agreement ONVIF protocol / support to expand RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP network protocols | |
interface | ||
Wired interface | 1 RJ45 10M/100M adaptive Ethernet port | |
Storage interface | Micro SD card (max. 8-128G) | |
Wireless parameter | ||
WIFI standard | IEEE802.11b, 802.11g, 802.11n | |
Frequency Range | 2.4 GHz ~ 2.4835 GHz | |
Other range | ||
Power consumption | 6W MAX | |
Color box size | 20.6*19.2*12.3cm | |
Temperature and humidity | Zero 10 ° C -60 ° C, humidity less than 90% [no condensation] | |
power supply | DC 12V ± 10% |
