Thuis /Producten/Wifi PTZ beveiligingscamera/Face Detection FSAN 8MP 31X Optical Zoom Smart IR Dome Network Security 4K PTZ Camera

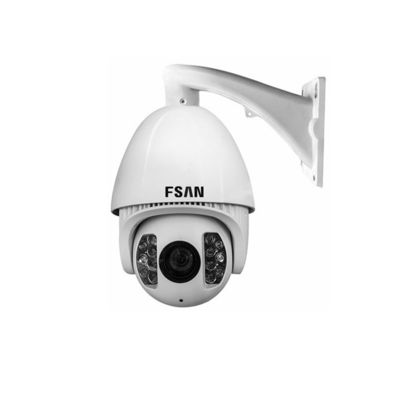

Face Detection FSAN 8MP 31X Optical Zoom Smart IR Dome Network Security 4K PTZ Camera

1 Piece
MOQ
$988.00(10 - 49 Pieces) $965.00(50 - 99 Pieces) $900.00(>=100 Pieces)
Prijs
Face Detection FSAN 8MP 31X Optical Zoom Smart IR Dome Network Security 4K PTZ Camera
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: WD272-9311
Warranty: 2 years
Special Features: Face detection, Target Counting, Electronic Fence, Retrograde Detection, Off-site Detection, Vehicle shape detection
Sensor: CMOS
Style: Dome Camera, PTZ camera
Function: Waterproof / Weatherproof, Wide Angle, Two-way Audio, PAN-TILT, NIGHT VISION, Alarm I/O, RESET, Built-in Mic
Video Compression Format: H.265
Data Storage Options: Cloud, NVR, Micro SD card
Application: Outdoor, River, Forest, Road, Railway, Airport, Ports, Sentry, Square, Park, Street, Railway station, Gymnasium, Village outside
Customized support: Online technical support, Customized logo, OEM, ODM, Customized OSD
Product Size: 10 Inch
Optical zoom: 31X
Leds: 14*OSRAM IR Leds
IR Distance: 180m
Waterproof: IP66
Keyword: HD IR PTZ Camera
Basis informatie
Model Number: WD272-9311
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Neutral packing Support customized packing
Productomschrijving
Related Products
Product Description

  • Products Features:

Support max 3840*2160@30fps HD video output
H.264/H.265 encoding
Low illumination 0.1Lux/F1.6(Color),0.05Lux/F1.6(B/W),0lUX(IR on)
31X 8MP HD optical zoom auto focus lens
Support 3DNR,WDR,defog,HLC,anti shake,etc
Support 360° pan endless;tile 0°-90°
Support manual speed:0.1°-200°/s, preset:250°/s
256 presets, 4 pattern scan, 8 preset cruise
3D positioning, privacy mask, PTZ watch
Support target counting,electronic fence,retrograde detection,off-site detection
Support face recognition, Human and vehicle shape detection
1CH audio input, 1CH audio output
2CH alarm input, 1CH alarm output, support alarm linkage
Support smart IR grouping control, IR distance can reach 180m
Support max 128G micro SD card
SDK, API, GB/T28121 protocol
Lighting protection, surging prevention, anti surge, IP66 protection level
Image Sensor
1/1.8″Sony 8.42M CMOS Sensor
Min. illumination
Color: 0.1 Lux@F1.6; B/W: 0.05Lux@F1.6, 0Lux(IR ON)
Effective pixels
8MP
Resolution
More than 1000TVL
Optical zoom
31X
Digital zoom
/
Focal length
f=6.5mm~202mm
Iris
F1.55(W)~F4.8（T）
Angle Of View
70°（Wide）~2.51°(Tele)
Zoom speed
1-10 level optional
Focus mode
Auto/ Manual
S/N ratio
＞50dB
Image adjust
Support brightness, contrast, saturation, Hue can be adjusted through web
White balance
Auto/Custom/Lock white balance / incandescent / warm / natural / fluorescen
Image mode
Standard/gorgeous/natural
Iris control
Auto/ Manual
Electronic shutter
Auto/ Manual (1/25~1/10000)
Auto slow shutter
On/Off
Gain control
Lower/Low/Middle/High/Higher
BLC
Off/HLC/BLC
WDR
Off/TWDR/DWDR
Day/Night
Auto/Color/ B/W/Extern
Mirror
Normal/ Horizontal Mirror/Vertical Mirror/180º rotation
DNR
3DNR, Off/Low/Middle/High/Higher
Defog
Off/Low/Middle/High
Anti Shake
Off/Low/Middle/High
AUDIO/VIDEO COMPRESSION
Video compression
H.265/H.264
H.265
Main Profile
H.264
Base Line / Main Profile / High Profile
Frame rate
1~30fps adjustable
Main stream resolution
3840×2160(2160P),2688×1512(1512P),2560×1440(1440P),2048×1536(1536P),1920×1080(1080p) ,1280×960(960p)
Sub stream resolution
720x576(D1)，640x480(VGA)，352x288(CIF)
Output format
PAL/NTSC adjustable
Max.resolution
3840x2160
Video bit rate
Constant bit rate, Variable bit rate(16kbps-8000kbps)
Stream type
Complex stream/ Video stream
Audio compression
G.711u
Audio bit rate
64Kbps
Audio control
Input volume(0-100),output volume(0-100)
ROI
8 zones（1-6）
FUNCTION
Pan range
360° endless
Tilt range
0°~90°
Manual control
0.1°~200°/s
Preset speed
250°/s
Preset accuracy
0.1°
Preset
256
Cruise
8 groups
Pattern
4 groups
Continuous scan
Support
Proportion zoom
Auto
PTZ watch
Off/ Preset/ Cruise/ Pattern
Auto flip
Mechanical Flip
Power off memory
Support
3D positioning
Support
Magnification/Coordinate
Support
IR irradiation angle
Automatically grouping adjusted, depending on the zoom ratio
IR distance
180m
Smart IR
IR irradiation brightness and angle can be adjusted depending on the zoom ratio
NETWORK
Network protocol
IPv4,TCP,UDP,HTTP,HTTPS,SMTP,FTP,NTP,DNS,DDNS,DHCP,ARP,UPnP,RTSP,RTP,RTCP, IGMP,PPPoE,ICMP,SNMP
Access protocol
GB/T28181
Browser
Support IE11
Video preview meanwhile
Max 10CH
User permission
User Add / Delete / Modify, Administrator/ Operator/Ordinary users
Safe mode
Authorized user name and password
Motion detection
Multi areas, multi-level sensitivity threshold optional
Tampering alarm
1 zone
Privacy mask
8 zones
Smart analysis
Target Counting、Electronic Fence、Retrograde Detection、Off-site Detection
Event linkage
Snapshot, TF card video, FTP upload or Email sending , alarm output linkage, Preset linkage
Multicast
On/Off
ANR
Support, match with the NVR
Mobile surveillance
Support Android,Apple
Device exception
Support network disconnected, IP conflict, illegal access alarm
OSD
Title, time and date overlay, OSD color/size adjustable
DST
Support
System upgrade
Support online remote upgrade
AI
Face detection number
detect 30 static or 10 dynamic face targets simultaneously
Recognition face size
Face pixel ≥80 pixels
Posture
Capture within 20 degrees in vertical, within 20 degrees in horizontal
Face deduplicate
Support
Face quality filtering
Support
Dynamic exposure
Support
Face database capacity
Support built-in 10000 faces
Recognition area
Full image recognition, support zone optional setting
Upload mode
FTP , SDK function calling upload
Human and vehicle shape detection
Target Counting、Electronic Fence、Retrograde Detection、Off-site Detection
INTEGRATION
Network interface
RJ45 10M/100M Network Adaptive
Analog video output
/
Audio
1CH input/1CH output, monitoring or bidirectional talk
Alarm input
2CH input
Alarm output
1CH output,support alarm linkage
Reset
Support
RS485 port
Support FSAN protocol
TF card
Support Max 128G, Support ANR
GENERAL
Protection grade
IP66
Operating temperature
Outdoor: -30℃～60℃(Support 30 minutes delay to boot up under low temperature )
Operating humidity
10%~90%RH ( No condensation)
Power supply
DC24V/2.5A（±10%）
POE
/
Power consumption(max.)
60W
Dimensions(mm)
426.7(H)*250(D)mm
Weight/PCS(Kg)
About 9kg
Details Images
Product Dimension & Interface
FAQ
Q: 1. Support sample order?
Yes, we support sample order for customer to test before bulk order place.

Q: 2. What is the lead time?
For sample order need 3-10 days, for bulk order time can be negotiate.

Q: 3. Do you have any MOQ limit?
Sample order is no limit, but for bulk order will have MOQ limit.

Q: 4. How do you ship the goods and how long does it take arrive?
For sample order, usually we shipped by DHL, Fedex, UPS or TNT.
For bulk order, usually we shipped by customer appointed forwarder by air, by sea or by train.

Q: 5. What is the warranty for the products?
Our warranty is for 2 years.

Q: 6. How is your after-selling service?
We support online technicial support.
Any problem with our product can contact us to solve problems at any time.

Q: 7. Do you supply OEM service?
Yes, we are professional OEM/ODM manufacturer.
We support customized logo print on products, customized package, customized GUI_language.
Packing&Shipping
Company Introduction
SHENZHEN FSAN INTELLIGENT TECHNOLOGY CO., LTD
FSAN was built in 2006, it is a national high-tech enterprises with video intelligence perception as its core strategy; FSAN is a
four-in-one ODM professional manufacturer of AI system total solution including software, hardware, intergation, manufacturing,
which involves HD intelligent camera, HD intelligent dome, HD intelligent NVR, HD intelligent zoom module, video AI, CMS platform
and other front-end and back-end, it ranked China's security industry top 100 enterprises and top 10 brands for many years.
