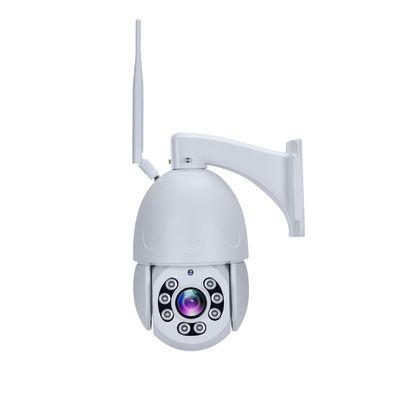

Human Motion Tracking Outdoor Dome Camera 5MP 30X Zoom WIFI PTZ IP Camera Colorful iCsee Speed ​​Night Vision Cloud Storage IP Camera ip66 Waterproof

Camera Module

System structure

Embedded RTOS, dual-core 32-bit DSP (XM550AI),pure hard compression

Sensor

5.0M 1/2.7"SC5335P low illumination CMOS sensor ,color 0.001Lux F1.2,black/white 0.0001Lux F1.2

Shutter Speed

1/50(1/60)s to 1/10,000s

Image output

Wire connection Main stream: 2592*1944 15fps; sub-stream: 640*360 25fps; wifi connection  Main stream: 2592*1944 12fps; sub-stream: 640*360 12fps,

Day and night

Support IR-CUT

Noise reduction

Support 2D/3D

Wide dynamic

Support digital Wide dynamic

Lens

Focal length

F=4.7-94mm lens, 20X optical zoom+10X Digital Zoom

Zoom Speed

Approx 4s

Angel of view

58.9°(wide)~2.1°(tele)

Max.Aperture

F1.6-F3.5

PTZ

Pan Range

355°

Pan speed

Cnfigurable,from 6– 40°/s,preset speed:40°/s

Tilt Range

0-90°

Tilt Speed

Configurable,from 6– 30°/s,preset speed:30°/s

Proporational Zoom

Yes

Preset

128

Cruise

8 cruises lines,up to 16 presets for each cruise line

Power off memory

yes

Action mode

Preset/Cruise/Track/Auto Scan/Random Scan

Video

Max.Resolution

2592*1944

Main Stream

Wire connection:2592*1944 15fps,wifi connection 2592*1944 12fps

Sub Stream

Wire connection: 640*360 25fps;wifi connection : 640*360 12fps

Video compression

H.265X coding,support dual stream,AVI;0.1M~10Mpbs variable

SVC

yes

Audio

Audio compression

G.711,support bidrectional talk,audio&video synchronization

Audio interface

1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone

Smart Features

Intelligence analysis

Supporting human detection, face detection, and support to customize other intelligent functions.

Network

Network Support

2.4 GHz  to  2.4835 GHz/IEEE802.11b. 802.11g. 802.11n Draft

Security Measures

Authenticated username and password, MAC address binding, HTTPS encryption,

802.1X authenticated access, IP address filter

Client

 CMS

Web Browser

IE 10+, Chrome 57+, Firefox 52+, Safari 12+

ONVIF

Yes

Interface

Communication Interface

1*RJ45 10/100M adaptive Ethernet port; support RTSP/FTPDHCP/NTP/UPnP etc

POE

Yes

Supplement Light

IR Distance

80m

Smart IR

yes

General

Power

DC12V

Operating Conditions

Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%

Size(mm)

239*137*215

Weight(kg)

1.5KG

Package Size(mm)

250*150*300

Package Weight(kg)

2.5KG

Web Client Language

12 languages: Simplified Chinese,traditional Chinese,English, Russian,German,Italian,French,,Portuguese, Spanish,

Korean, Portuguese (Brazil),Czech

Approval

Protection

Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to

Gnd, ±3kV Line to Line, IEC61000-4-5, IP66 Standard
