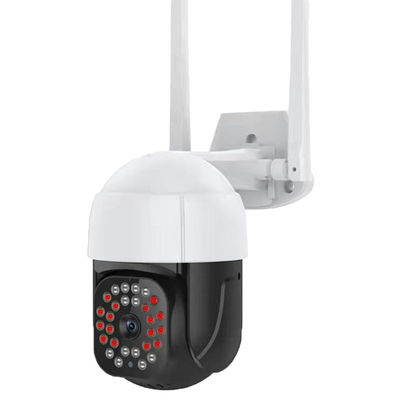

Model No . | TY28 |
Image sensor | 1/2.8" CMOS |
Horizontal resolution | 2MP/ |
Effective pixel | 1920*1080P |
Minimum illumination | Color to B/W,Color:0.1Lux,B/W:0.01Lux |
S/N ratio | >50dB(Enhanced) |
Backlight compensation | On/Off |
camera color | white +black |
Electronic shutter | PAL:1/50~1/10000 S NTSC:1/60~1/12000 S |
Focus length | 3.6mm |
Focus | Auto / Manual / Push Auto , the use of high-performanceDSP to realize complete digit and ultra-high speed focus function |
IR distance | about 20M |
Other scan | Support Horizontal scan, deuce area scan, scan random |
Rotation range | Horizontal 355°unlimted rotation, Vertical 90°,auto reversal |
Video compression | H.265 Main Profile encoding ; MJPEG / JPEG Baseline encoding |
Audio compression | G.711, G.726 |
Video bit rate | 32Kbps-16Mbps continuously adjustable, support CBR / VBR |
Network protocol | TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、 FTP、NTP、PPPOE、SMTP、UPNP |
Power supply | DC12V/2A (camera price not including power supply) |
Waterproof Standard | Outdoor IP66 |
Work environment | -20°C~+50°C (select temperature control accessories), <95%RH |
