Thuis /Producten/IP PTZ beveiligingscamera/Human Motion Tracking IPC9312LFW-AF28-2X4 Uniview CCTV System 2*2MP Lighthunter Double-Lens Network PTZ Camera Mini Size

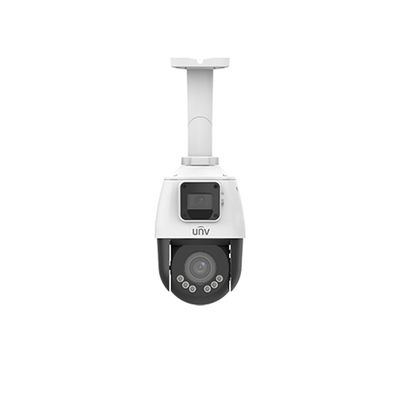

Human Motion Tracking IPC9312LFW-AF28-2X4 Uniview CCTV System 2*2MP Lighthunter Double-Lens Network PTZ Camera Mini Size

1 Set
MOQ
$180.00(1 - 9 Sets) $177.00(10 - 99 Sets) $170.00(>=100 Sets)
Prijs
Human Motion Tracking IPC9312LFW-AF28-2X4 Uniview CCTV System 2*2MP Lighthunter Double-Lens Network PTZ Camera Mini Size
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: IPC9312LFW-AF28-2X4
Warranty: 1 Year
Special Features: Human Motion Tracking, Face detection, NIGHT VISION, Motion Detection, Sound Detection, Waterproof / Weatherproof, PAN-TILT, Two-way Audio, Low Power
Sensor: CMOS
Style: Dome Camera, Mini camera, PTZ camera
Function: Two-way Audio, PAN-TILT, Abnormal sound detection, Alarm I/O, RESET, Built-in Mic, NIGHT VISION, Waterproof / Weatherproof, Wide Angle
Video Compression Format: H.265
Data Storage Options: DVR, Cloud, NVR, Micro SD card, Full HD
Application: Outdoor, Indoor
Customized support: Online technical support
Image Sensor: 1/2.8" 2Megapixel CMOS
WDR: 120dB
Minimum Illumination: Color:0.002 lux (F1.6, AGC ON) 0 lux with IR
Lens type: 2.8~12mm,AF automatic focusing and motorized zoom lens
IR Distance: Up to 50m (164ft)
ROI: Support, Up to 8 areas
Video stream: Triple streams
Basic Detection: Audio detection
Edge Storage: Micro SD, up to 256GB
Protection: IP66
Basis informatie
Model Number: IPC9312LFW-AF28-2X4
Betalen & Verzenden Algemene voorwaarden
Packaging Details: uniview ptz camera IPC9312LFW-AF28-2X4 package
Supply Ability: 5000 Set/Sets per Week Mini dual lens PTZ Camera
Productomschrijving
Product Description

Model NO. IPC9312LFW-AF28-2X4


2*2MP Lighthunter Dual-lens Network PTZ camera


•Fixed camera and PTZ camera integration, dual channels with one IP, look at overall situation and consider details at the same
time
• High quality image with 2MP,1/2.8’’ CMOS sensor
• 1920*1080@25fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• 4X optical zoom of PTZ channel allows for closer viewing of subjects
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• Built-in 2*mic & high-power speaker, support two-way audio, has better sound performance
• Support ceiling mount and wall mount
• IR & warm light illumination to deal with different scenes and achieve full-color illumination
• DC12V or PoE+(IEEE 802.3at) power supply
Tech Specification
IPC9312LFW-AF28-2X4
Camera
Panorama
Detail
Sensor
1/2.8", 2MP, CMOS
Min. Illumination
Color:0.002 lux (F1.6, AGC ON)
Color:0.002 lux (F1.6, AGC ON)
0 lux with IR
0 lux with IR/Warm light
Day/Night
IR-cut filter with auto switch (ICR)
Shutter
Auto/Manual, 1 ~ 1/100000s
WDR
120dB
DWDR
S/N
＞52dB
Lens
Lens type
2.8mm@F1.6
2.8~12mm@F1.6,
AF automatic focusing and motorized zoom lens
Optical Zoom
N/A
4X
Iris
Fixed aperture
Angle of View (H)
102.4°
106.6° ~ 30.6°
Angle of View (V)
54.9°
56.5° ~ 17.4°
Angle of View (O)
133.1°
138.6° ~ 37.6°
DORI
DORI Distance
Lens (mm)
Detect (m)
Observe (m)
Recognize (m)
Identify (m)
2.8(Panorama)
43.4(142.5ft)
17.4(57.0ft)
8.7(28.5ft)
4.3(14.3ft)
2.8(Detail)
43.4(142.5ft)
17.4(57.0ft)
8.7(28.5ft)
4.3(14.3ft)
12(Detail)
162.9(534.6ft)
65.2(213.8ft)
32.6(106.9ft)
16.3(53.5ft)
Illuminator
IR Range
Up to 10m (32.8 ft)
Up to 50m (164.0 ft)
Warm Light Range
N/A
Up to 10m (32.8 ft)
Wavelength
850nm (IR)
Light On/Off Control
Auto/Manual
Video
Video Compression
Ultra 265, H.265, H.264, MJPEG
Frame Rate
Main Stream: 1080P (1920*1080),Max 25fps
Sub Stream: 720P (1280*720), Max 25fps
Video Bit Rate
128 Kbps~16 Mbps
U-code
Support (Main stream)
ROI
Up to 8 areas
Video stream
Dual streams
OSD
Up to 4 OSDs
Privacy Mask
24 areas, up to 4 areas per scene
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction
2D/3D DNR
Smart IR
Support
Flip
Normal/Flip Vertical/Flip Horizontal/180°
HLC
Support
BLC
Support
Defog
Digital defog
Events
Basic Detection
Audio detection
General Function
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression
G.711U, G.711A
Audio Bitrate
64 Kbps
Two-way Audio
Support
Suppression
Support
Sampling Rate
8 kHz
Storage
Edge Storage
Micro SD, up to 256 GB
Network Storage
ANR,NAS(NFS)
Network
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS,
RTMP, SSL/TLS
Compatible Integration
ONVIF (Profile S, Profile G), API, SDK
User/Host
Up to 32 users. 2 user levels: administrator and common user
Security
Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest
authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client
EZStation
EZLive
EZView
Web Browser
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt
Pan Range
N/A
0° ~ 345°
Pan Speed
N/A
1°/s ~ 40°/s
Preset speed: N/A
Preset speed: 40°/s
Tilt Range
18° ± 5°
-10° ~ 100°
Tilt Speed
N/A
1°/s ~ 50°/s
Preset speed: N/A
Preset speed: 50°/s
Number of Presets
255
Preset Patrol
16 patrol routes, up to 64 presets for each route
Patrol Stay Time
1000s~1800s
Preset Image Freeze
N/A
Home Position
Support
Interface
Audio I/O
N/A
Alarm I/O
N/A
Serial Port
N/A
Built-in Mic
Support (Mic*2)
Built-in Speaker
Support
Wi-Fi
N/A
Network
1 * RJ45 10M/100M Base-TX Ethernet
Video Output
N/A
Certification
EMC
FCC CFR 47 Part 15
EN 55032:2015
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3-2013
Safety
IEC 62368-1
EN 62368-1
UL 62368-1
Environment
CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
General
Power
DC12V, PoE+(IEEE 802.3at)
Power consumption: MAX 16W
Power Interface
Ø 5.5mm coaxial power plug
Dimensions (Ø x H)
Wall Mount: Φ134 x 192 x 302mm (Φ5.3” x 7.6” x 11.9”)
Ceiling Mount: Φ134 x 154 x 363mm (Φ5.3” x 6.1” x 14.3”)
Weight
1.03kg (2.27lb)
Working Environment
-20℃ ~ 60℃(-4°F ~ 140°F)，Humidity: ≤95% RH (non-condensing)
Storage Environment
-30℃ ~ 70℃(-22°F ~ 158°F)，Humidity: ≤95% RH (non-condensing)
Surge protection
2KV
Reset button
Support
Protection
Ingress Protection: IP66
Vandal Resistant: N/A
