What is the Specification of this Product ?

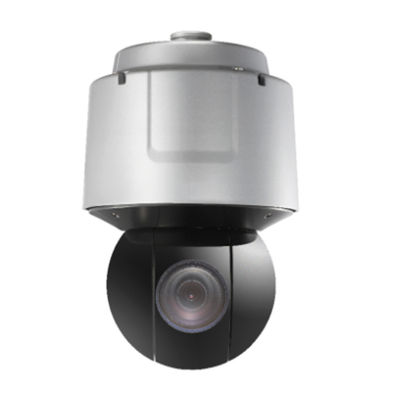

6-inch 4K 25X Powered by DarkFighter Network Speed Dome

• High quality imaging with 8 MP resolution
• Excellent low-light performance via DarkFighter technology
• 25x optical zoom provides close up views over expansive areas
• Intelligent functions based on deep learning
• Water and dust resistant (IP67) and vandal proof (IK10).

• Lens
• FOVHorizontal field of view: 56.1° to 3.0° (wide-tele),Vertical field of view: 33.4° to 1.7° (wide-tele),Diagonal field of view: 62.9° to 3.4° (wide-tele)
• Zoom SpeedApprox. 6.4 s (optical lens, wide-tele)
• Working Distance10 mm to 1500 mm (wide-tele)
• Aperture RangeF1.5 to F4.0
• Focal Length7.5 mm to 187.5 mm, 25× optical zoom

• Image
• Image EnhancementHLC/BLC/3D DNR/Optical Defog/EIS/Regional Exposure/Regional Focus
• Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
• Max. Resolution4096 × 2160
• Main Stream50Hz: 25fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
• Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Network
• Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
• APIOpen-ended, support ONVIF, ISAPI, and CGI, support Third-Party Management Platform
• Simultaneous Live ViewUp to 20 channels
• User/HostUp to 32 users. ,3 levels: Administrator, Operator and User
• ClientiVMS-4200, iVMS-4500, iVMS-5200
• Web BrowserIE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
• Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
• Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

• Interface
• BNC1.0 V [p-p]/75 Ω, NTSC (or PAL) composite, BNC
• Alarm Output2-ch alarm output
• Alarm Input7-ch alarm input
• Audio Input1-ch audio input, 2 to 2.4 V[p-p], 1 KΩ ± 10%
• Audio Output1-ch audio output, line level, impedance: 600 Ω
• Network Interface1 RJ45 10 M/100 M Ethernet Interface, Hi-PoE
• RS-485Half duplex, Pelco-P, Pelco-D, self-adaptive

• General
• MaterialAluminum alloy
• DimensionsΦ 231.1 mm × 355.6 mm (Φ 9.10" × 14")
• WeightApprox. 6 kg (13.23 lb)
• Protection LevelIP67 Standard, IK10, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Power24 VAC (max. 60 W, including max.10 W for heater) , Hi-PoE (max. 50 W, including max.10 W for heater)
• Working TemperatureTemperature: -40°C to 70°C (-40°F to 158°F)
• Working HumidityHumidity: ≤ 90%

• Compression Standard
• H.264+Yes
• H.265+Yes
• H.264 TypeBaseline Profile/Main Profile/High Profile
• Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
• H.265 TypeMain Profile
• Video Bitrate32 Kbps to 16384 Kbps
• Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
• Audio Bitrate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
• SVCSupport

• Camera Module
• Image Sensor2/3" progressive scan CMOS
• Min. IlluminationColor: 0.005 Lux @(F1.5, AGC ON),B/W: 0.0005 Lux @(F1.5, AGC ON)
• White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
• GainAuto/Manual
• Shutter Time1/1 s to 1/30,000 s
• Day & NightIR Cut Filter
• Digital Zoom16×
• Privacy Mask24 programmable polygon privacy masks
• Focus ModeAuto/Semi-automatic/Manual
• WDRDigital WDR
• Rapid FocusYes

• PTZ
• Movement Range (Pan)360° endless
• Pan SpeedConfigurable, from 0.1°/s to 350°/s, preset speed: 540°/s
• Movement Range (Tilt)From -20° to 90° (auto flip)
• Tilt SpeedConfigurable, from 0.1°/s to 240°/s, Preset Speed: 400°/s
• Proportional ZoomYes
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans, record time over 10 minutes for each scan
• Power-Off MemoryYes
• Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• 3D PositioningYes
• PTZ Status DisplayON/OFF
• Preset FreezingYes
• Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

• Smart Features
• Smart TrackingManual Tracking, Auto Tracking (support tracking specified target types such as human and vehicle), Event Tracking
• Smart RecordANR (Automatic Network Replenishment), Dual-VCA
• ROIEight fixed region for each stream
• Perimeter ProtectionIntrusion, Line Crossing, Region Entrance, Region Exiting,Support alarm triggering by specified target types (human and vehicle),Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.
• Event DetectionUnattended Baggage Detection, Object Removal Detection, Face Detection, Audio Exception Detection
